PRODUCT

PON

EPON ONU GPON ONU XPON ONU EPON OLT GPON OLT WIRELESS ROUTER

1GE xPON ONT P3（1GE）

P3 supports the up-link and down-link symmetric 1G bps transmission rate, providing users with good QOS guarantee and flexible ...

Current position：HOME > PON

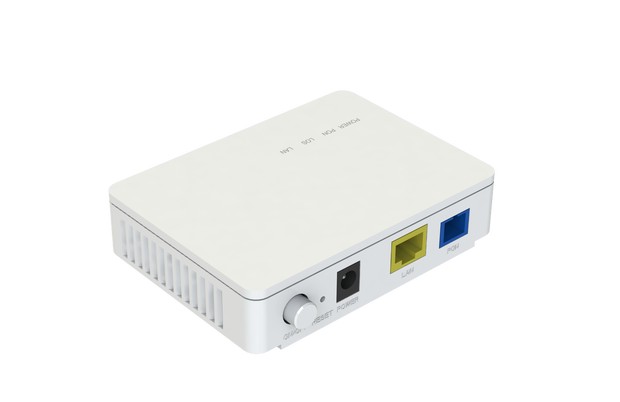

1GE xPON ONT P3（1GE）

Overview    P3 supports the up-link and down-link symmetric 1G bps transmission rate, providing users with good QOS guarantee and flexible bandwidth allocation. Ethernet business and IP integrated services. providing users with more efficient data transmission guarantee.
   P3 has high reliability and provides quality of service guarantee, easy management, flexible expansion and networking. it is fully compliant to technical regulations such the ITU-T G984.x and IEEE802.3ah technical standards and has good compatibility with third party manufacturers OLT. Features         ● Dual mode(Can access EPON/GPON OLTs).
        ● Plug and play, integrate auto detection, auto configuration and auto firmware upgrading.
        ● Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission distance to 20Km(GPON Mode).
        ● Fiber access and gigabit port provide incredibly fast transfer speeds.
        ● Supports OMCI (ONT Management Control Interface) and OAM remote management.
        ● Support IPv4/ IPv6 IGMP snooping and MLD snooping.
        ● Support bridge, route and bridge/route mixed mode. Technical Specifications

General
Protocol Standards	ITU-T G.984.x,IEEE802.3ah
Distance	20Km Max
Data Rates	1 GPON/EPON auto-adaptive interface, SC single-mode/single-fiber Work as GPON:Upstream rate 1.25Gbps Downstream rate 2.5Gbps Work as EPON:Upstream rate 1.25Gbps Downstream rate 1.25Gbps
PON TX Power	1~5dBm（1310nm）
PON RX sensitivity	<-28dBm（1490nm）
Power	≤ 3W
Hardware
Interfaces	1xSC/PC or 1xSC/APC (optional) 1 x 10/100/1000Mbps LAN port
Buttons	Reset Button
Power Supply	DC 12V 0.5A
Dimensions (W X D X H)	1047022mm(lengthwidthheight)
Environment
Operating Temperature	-10°C~50°C
Storage Temperature	-40°C~70°C
Operating Humidity	10%~90%, non-condensing
Storage Humidity	5%~90% non-condensing
Certifications	CE, RoHS
Software
WAN Type	Dynamic IP/Static IP/PPPoE
DHCP	Server, Client, DHCP Client List, Address Reservation
Quality of Service	Bandwidth Control
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
VLAN	Port-based VALN GVRP IEEE802.1Q VLAN
Access Control	Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
Management	Various management modes such as Web,TELNET Local Management Remote Management
Internet Protocol	IPv4, IPv6
Package Contents
Package Contents	1 x xPON ONT 1 x Quick Installation Guide 1 x Power Adapter
